Trend line

IndicatorsFrom Pro

• Value

Trend line

falling · 86,999 → 84,352

• Line

This is how the node looks on the board: inputs on the left, outputs on the right.

Line through two points on the chart. A straight line through two points you draw on the chart, such as two highs. From the first point it continues to the right, past the last candle too. With a Compare A/B the chain alerts you when the price crosses the line. Example: “Price crosses above trend line” reports the breakout above a falling line.

What it looks like

• Price (close of each candle)
• Trend line
• points of the line
• Price crosses above Trend line

BTC/USDT on 1-hour candles with a trend line through two highs. It starts at the first point and continues to the right; at the dot the price closes above it for the first time, and “Price crosses above Trend line” reports the breakout there.

Setting it in the chart

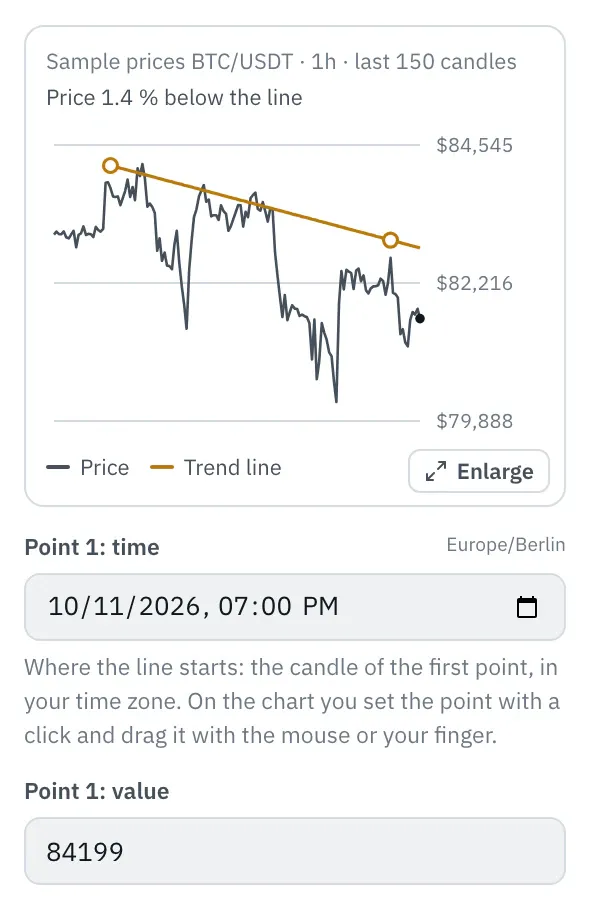

In the properties, a chart shows the last 150 candles with the trend line and its points; the top line shows how far the price at the last candle is above or below the line. You draw and drag it on the chart: “Enlarge” opens it, and a trend line without points is drawn there with “Draw the line on the chart”. You can also type time and value of the points in the fields.

More under Draw a trend line.

Settings

The settings appear on the right under “Properties” once you click the node on the board. Below each field you find the same explanation as here.

Point 1: time

Default: empty · point in time, shown in your time zone in the editor, stored in UTC, must be filled in before activating

Where the line starts: the candle of the first point, in your time zone. On the chart you set the point with a click and drag it with the mouse or your finger.

Point 1: value

Default: 0

The value at the first point, usually a price like 84,120. If the point sits on a high, take the price of the high.

Point 2: time

Default: empty · point in time, shown in your time zone in the editor, stored in UTC, must be filled in before activating

The candle of the second point. The line runs through both points and then on to the right.

Point 2: value

Default: 0

The value at the second point. Higher than the first means a rising line, lower means a falling one.

Example

A breakout: the trend line falls through two highs, Telegram notifies you as soon as the price rises above it. You draw it on the chart with two clicks.

How to connect the nodes:

1. Candle (Price) → Trend line (Value)
2. Candle (Price) → Compare A/B (A)
3. Trend line (Line) → Compare A/B (B)
4. Compare A/B (true/false) → Telegram (Trigger)

On the board it reads: falling · 86,999 → 84,352

Chain as JSON

To try it, copy it and paste it in the editor under “Import”. Importing creates a new chain.

trendline.json

{
  "name": "Example: Trend line",
  "version": 1,
  "nodes": [
    { "id": "c1", "type": "core.candle", "position": { "x": 40, "y": 40 }, "settings": { "pair": "BTC/USDT", "timeframe": "1h" } },
    { "id": "l1", "type": "core.trendline", "position": { "x": 260, "y": 40 }, "settings": { "time1": "2026-10-05T00:00:00Z", "value1": 86999, "time2": "2026-10-12T04:00:00Z", "value2": 84352 } },
    { "id": "k1", "type": "core.compare-ab", "position": { "x": 480, "y": 40 }, "settings": { "operator": "crossesAbove" } },
    { "id": "t1", "type": "core.telegram", "position": { "x": 700, "y": 40 }, "settings": {} }
  ],
  "edges": [
    { "from": "c1.close", "to": "l1.in" },
    { "from": "c1.close", "to": "k1.a" },
    { "from": "l1.out", "to": "k1.b" },
    { "from": "k1.out", "to": "t1.in" }
  ]
}

Inputs and outputs

Only matching types connect: number series to number series (round pin), signal to signal (square), message to message (diamond).

Direction	Pin	Type	Note
Input	Value	Number series	required
Output	Line	Number series	in the unit of the input

Good to know

• In messages the value is called “Trend line”.
• Search also finds it under: trend line, trendline, line, draw, breakout, resistance, support.

Technical details

Value on every candle from the first point: value 1 + (value 2 − value 1) · (open time − time 1) / (time 2 − time 1), linear in time; empty before the first point and without a value at the input.

• Type in the chain: core.trendline · Version 1.0.0 · Category key ind
• Settings in the chain: time1 (Point 1: time), value1 (Point 1: value), time2 (Point 2: time), value2 (Point 2: value)
• Pins in the chain: Input in · Output out
• Reference tests in the manifest: 3 (with fixed price data: 500 candles of 1h)
