Heikin Ashi

IndicatorsFrom Pro

• Price
• Open
• High
• Low

Heikin Ashi

smoothed candles

• HA close
• HA open
• HA high
• HA low
• green
• red
• turns up
• turns down

This is how the node looks on the board: inputs on the left, outputs on the right.

Smoothed candles, a color change as a turn. Turns every candle into a smoothed Heikin Ashi candle: its close is the average of open, high, low and close, its open the middle of the Heikin Ashi candle before. In a trend the candles stay green or red for longer, single counter-candles weigh less. “Turns up” is true on the first green candle after a red one, “turns down” the other way round. The values are averages, not traded prices; for levels and stops use the candle itself. Example: Heikin Ashi turns up on 4-hour candles reports when the first green candle follows a series of red ones.

What it looks like

• green: close above open
• red: close below open
• turn

The same 80 hours of BTC/USDT twice: on top as normal candles, below as Heikin Ashi. Because each Heikin Ashi candle starts at the middle of the previous one and averages its close from open, high, low and close, the colors stay the same for longer during a move. “Turns up” reports the first green candle after a red one.

Setting it in the chart

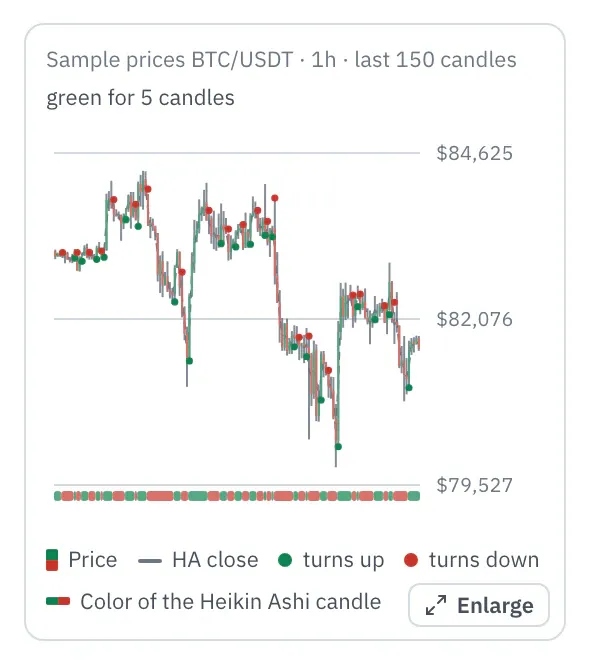

In the properties, a chart shows the last 150 candles with the close of the Heikin Ashi candles as a line, dots at the turns and below them a strip in the color of each Heikin Ashi candle. The top line shows how long the last color has held. There is nothing to set.

More under Chart above the price.

Settings

No settings.

Example

Notifies you of the first green Heikin Ashi candle after a red one: the smoothed move turns up.

How to connect the nodes:

1. Candle (Price) → Heikin Ashi (Price)
2. Candle (Open) → Heikin Ashi (Open)
3. Candle (High) → Heikin Ashi (High)
4. Candle (Low) → Heikin Ashi (Low)
5. Heikin Ashi (turns up) → Telegram (Trigger)

On the board it reads: smoothed candles

Chain as JSON

To try it, copy it and paste it in the editor under “Import”. Importing creates a new chain.

heikin-ashi.json

{
  "name": "Example: Heikin Ashi",
  "version": 1,
  "nodes": [
    { "id": "c1", "type": "core.candle", "position": { "x": 40, "y": 40 }, "settings": { "pair": "BTC/USDT", "timeframe": "1h" } },
    { "id": "h1", "type": "core.heikin-ashi", "position": { "x": 260, "y": 40 }, "settings": {} },
    { "id": "t1", "type": "core.telegram", "position": { "x": 480, "y": 40 }, "settings": {} }
  ],
  "edges": [
    { "from": "c1.close", "to": "h1.close" },
    { "from": "c1.open", "to": "h1.open" },
    { "from": "c1.high", "to": "h1.high" },
    { "from": "c1.low", "to": "h1.low" },
    { "from": "h1.up", "to": "t1.in" }
  ]
}

Inputs and outputs

Only matching types connect: number series to number series (round pin), signal to signal (square), message to message (diamond).

Direction	Pin	Type	Note
Input	Price	Number series	required
Input	Open	Number series	required
Input	High	Number series	required
Input	Low	Number series	required
Output	HA close	Number series	appears in messages as a price, e.g. “$81,616”
Output	HA open	Number series	appears in messages as a price, e.g. “$81,616”
Output	HA high	Number series	appears in messages as a price, e.g. “$81,616”
Output	HA low	Number series	appears in messages as a price, e.g. “$81,616”
Output	green	Signal (true/false)	–
Output	red	Signal (true/false)	–
Output	turns up	Signal (true/false)	–
Output	turns down	Signal (true/false)	–

Good to know

• In messages the values are called “HA close”, “HA open”, “HA high”, “HA low”.
• Warm-up with the default settings: 50 candles (this many extra candles are loaded by the replay before the value is reliable).
• Search also finds it under: heikin ashi, heikin-ashi, ha, candles, smoothed, trend, reversal, color change.

Technical details

HA close = (open + high + low + close) / 4; HA open = (HA open + HA close of the candle before) / 2, on the first candle (open + close) / 2; HA high and HA low include HA open and HA close. Green: HA close above HA open, red below; candles without a body have no color and do not change the turn. The start no longer has an effect after 50 candles. The same calculation as the Heikin Ashi candles in TradingView.

• Type in the chain: core.heikin-ashi · Version 1.0.0 · Category key ind
• Pins in the chain: Input close, open, high, low · Output close, open, high, low, green, red, up, down
• Reference tests in the manifest: 1 (with fixed price data: 500 candles of 1h)
• How a node is built
