Breaker blocks

IndicatorsFrom Trader

• Price
• High
• Low

Breaker blocks

bullish · untouched only · 10 · 10

• Price reaches breaker
• Close in breaker
• New breaker
• Breaker broken
• Top
• Bottom

This is how the node looks on the board: inputs on the left, outputs on the right.

Like a ceiling that becomes a floor: when the price breaks through an order block that held it back before, the same zone often carries it on the way back.

Order blocks that switch sides. A breaker is an order block that did not hold: when the price closes above a bearish order block, the zone that pushed it down before becomes support. Many traders expect buyers when the price returns there. The node reports new breakers, the return into the zone, a close inside it and the break, and gives the nearest zone. A touch only counts as a return after the price has left the zone once; the candles right after the breakthrough do not count. Example: bullish with untouched only reports the first test of a zone BTC broke up through before.

What it looks like

• Breaker as resistance
• Order block until the breakthrough
• Price reaches breaker

BTC/USDT candles. A bullish order block (grey) carried the price until a candle closed below it: from then on it is a bearish breaker (red), resistance above the price. A candle only counts as a return after the price has left the zone once (dots).

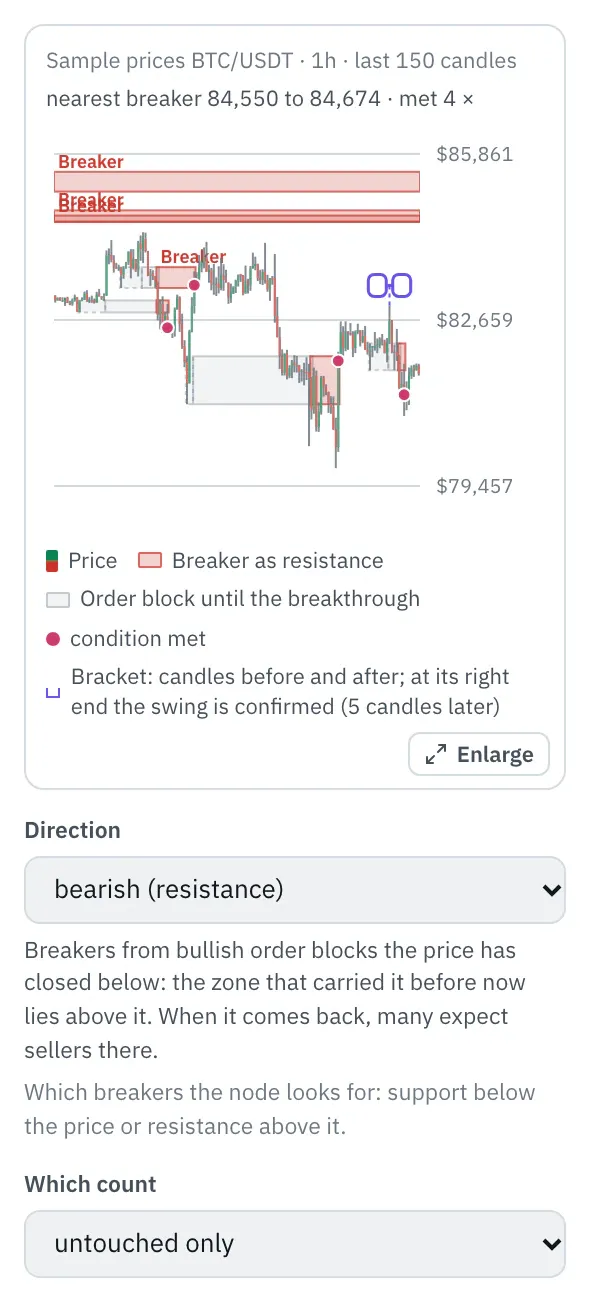

Setting it in the chart

In the properties, a chart shows the last 150 candles and on top of them what the node finds with your settings; dotted or dashed is what it did not know yet at that time. Drag the ends of the bracket at the latest swing to change “Candles before” and “Candles after”; at its right end the swing is confirmed. The top line shows the state at the last candle, and the chart follows every setting right away.

More under Smart money and Chart above the price.

Settings

The settings appear on the right under “Properties” once you click the node on the board. Below each field you find the same explanation as here.

Direction

Default: bullish (support)

Which breakers the node looks for: support below the price or resistance above it.

• bullish (support) (default): Breakers from bearish order blocks the price has closed above: the zone that pushed it down before now lies below it. When it comes back, many expect buyers there.
• bearish (resistance): Breakers from bullish order blocks the price has closed below: the zone that carried it before now lies above it. When it comes back, many expect sellers there.

Which count

Default: untouched only

Whether a breaker keeps counting after the first return.

• untouched only (default): A breaker counts until the first return into the zone after the price has left it. This way only the first test reports.
• mitigated too: A breaker keeps counting after returns until a candle closes beyond it. Every new return reports.

Candles before

Default: 10 · from 1 to 100, whole number

How many candles before a high must all be lower, before a low higher. With more candles only clearer turning points count.

Candles after

Default: 10 · from 1 to 100, whole number

How many candles after a high must not rise above it before it counts as a swing. Only then does it count here, that many candles later; with fewer candles it counts sooner, but smaller turning points count too.

Example

Notifies you of the first return into a zone BTC broke up through before: the former resistance is tested as support.

How to connect the nodes:

1. Candle (Price) → Breaker blocks (Price)
2. Candle (High) → Breaker blocks (High)
3. Candle (Low) → Breaker blocks (Low)
4. Breaker blocks (Price reaches breaker) → Telegram (Trigger)

On the board it reads: bullish · untouched only · 10 · 10

Chain as JSON

To try it, copy it and paste it in the editor under “Import”. Importing creates a new chain.

breakers.json

{
  "name": "Example: Breaker blocks",
  "version": 1,
  "nodes": [
    { "id": "c1", "type": "core.candle", "position": { "x": 40, "y": 40 }, "settings": { "pair": "BTC/USDT", "timeframe": "1h" } },
    { "id": "b1", "type": "core.breakers", "position": { "x": 260, "y": 40 }, "settings": {} },
    { "id": "t1", "type": "core.telegram", "position": { "x": 480, "y": 40 }, "settings": {} }
  ],
  "edges": [
    { "from": "c1.close", "to": "b1.close" },
    { "from": "c1.high", "to": "b1.high" },
    { "from": "c1.low", "to": "b1.low" },
    { "from": "b1.enter", "to": "t1.in" }
  ]
}

Inputs and outputs

Only matching types connect: number series to number series (round pin), signal to signal (square), message to message (diamond).

Direction	Pin	Type	Note
Input	Price	Number series	required
Input	High	Number series	required
Input	Low	Number series	required
Output	Price reaches breaker	Signal (true/false)	–
Output	Close in breaker	Signal (true/false)	–
Output	New breaker	Signal (true/false)	–
Output	Breaker broken	Signal (true/false)	–
Output	Top	Number series	appears in messages as a price, e.g. “$81,616”
Output	Bottom	Number series	appears in messages as a price, e.g. “$81,616”

Good to know

• In messages the values are called “breaker top 10 · 10”, “breaker bottom 10 · 10”.
• Warm-up with the default settings: 1,520 candles (this many extra candles are loaded by the replay before the value is reliable).
• Search also finds it under: breaker, breaker block, order block, broken, flip, support, resistance, retest, smart money, smc.

Technical details

Order blocks as in the Order blocks node, counted until their break. Bullish breaker: a bearish order block whose high a candle closes above; known from that candle, zone from the order block’s low to its high. It counts from the candle after, until a candle closes below its low, at most 500 candles; “reaches” means a low at or below its high, reported when the candle before did not reach it (if the break candle already reaches into it, it counts as reached). With “untouched only” it counts until the first “reaches”. Bearish mirrored.

• Type in the chain: core.breakers · Version 1.0.0 · Category key ind
• Settings in the chain: side (Direction), mode (Which count), left (Candles before), right (Candles after)
• Pins in the chain: Input close, high, low · Output enter, inside, formed, broken, top, bottom
• Reference tests in the manifest: 1 (with fixed price data: 500 candles of 1h)
